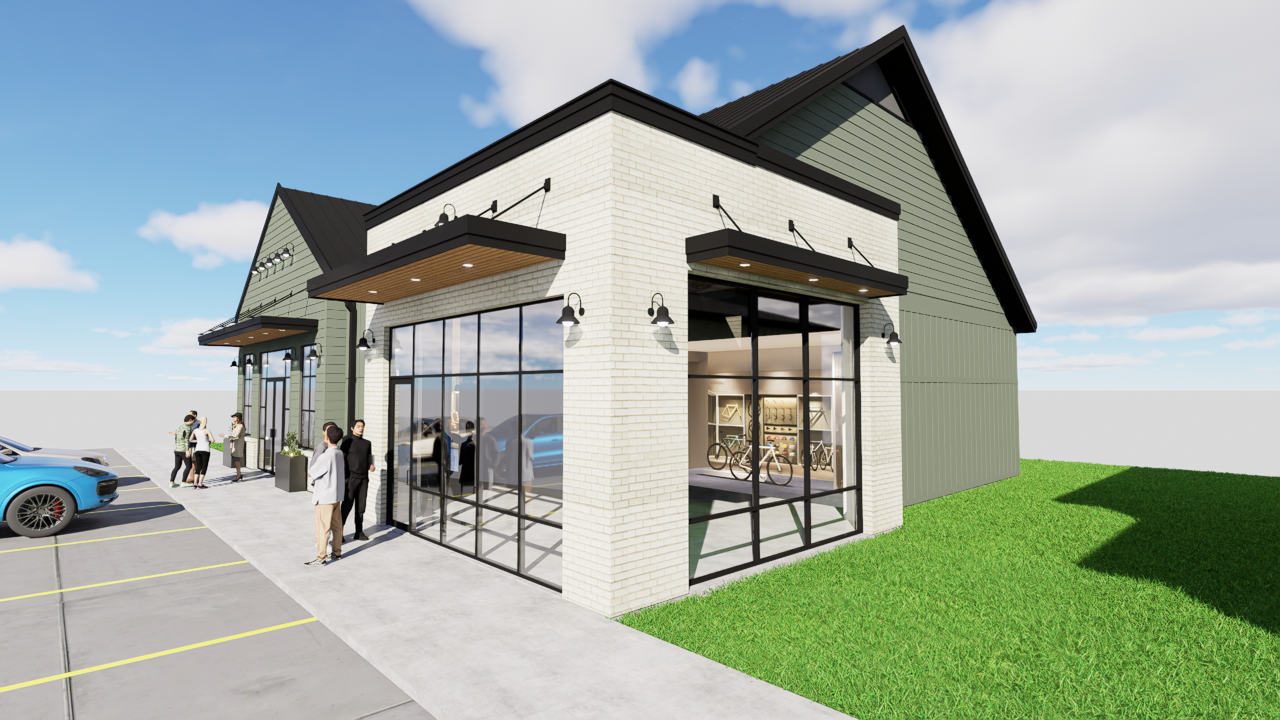

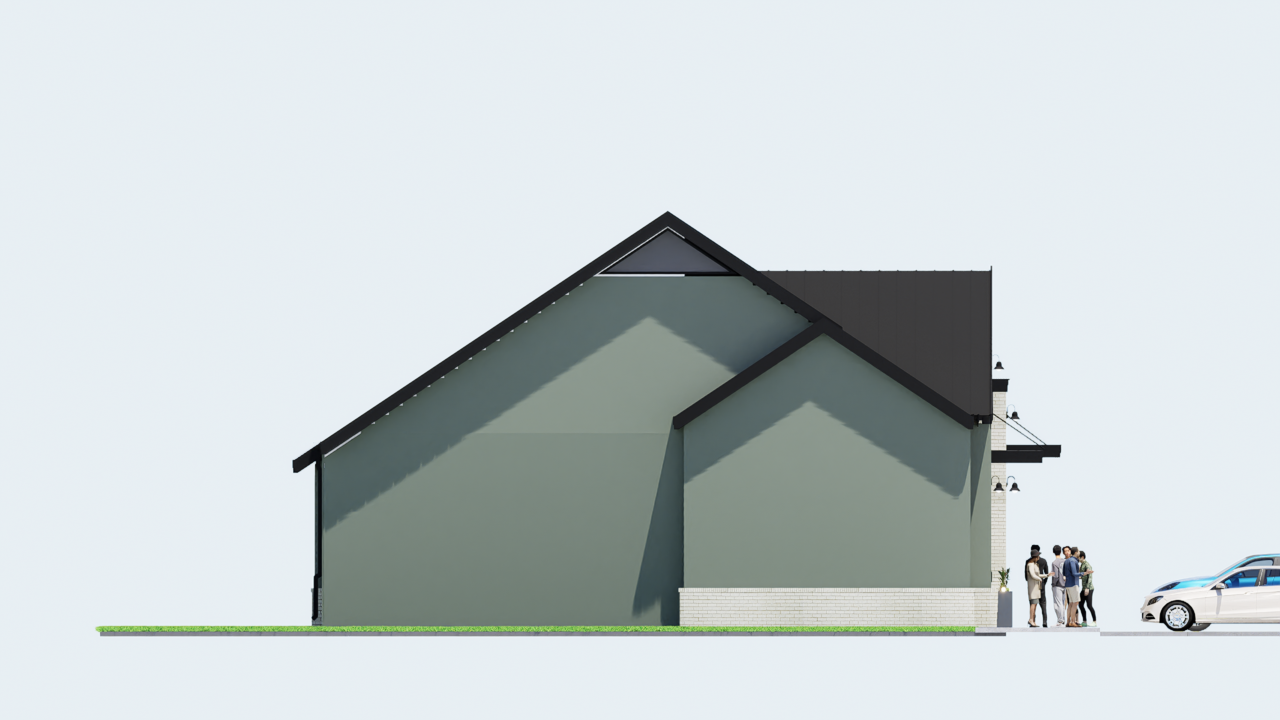

new D5 3.1 download - Storefront walls - used as board and batten and / or standing seam glazed roofs, the panels and mullions render flat in orthographic views

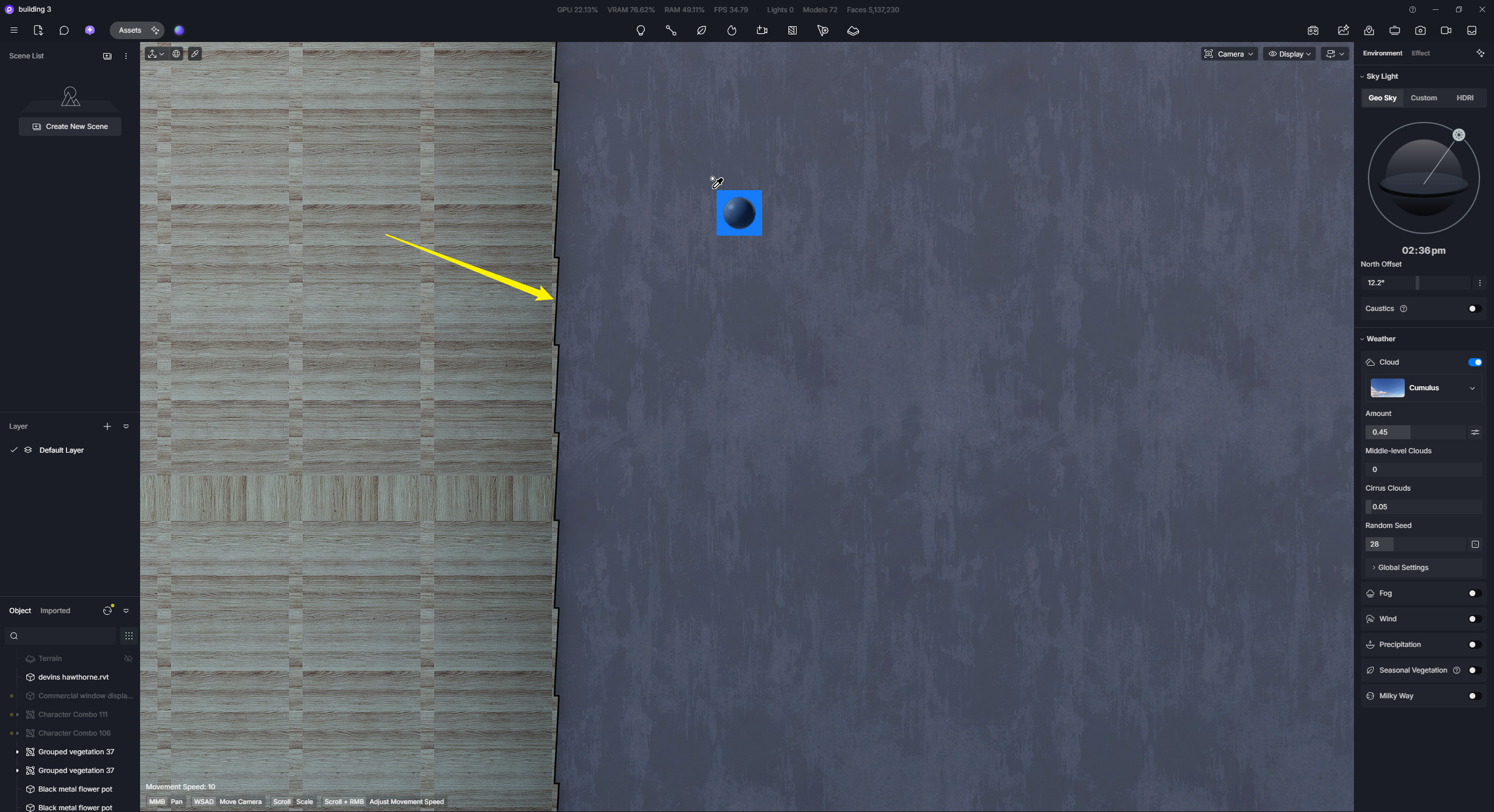

I apologize for the inconvenience. Can you confirm if this issue only occured in 3.1 and reverting to 3.0.1 fixes the issue?
- I’ve managed to test some of my files that was created in earlier version then opened in 3.1 but I can’t seem to replicate it on my end.
If possible, can you please send your Revit File and D5 File? You may generate a link containing these files, then send it to me privately.
I just tested your file. I think this is within expectations.
-
The Parallel Project Views will present your model in an Elevation view. This representation will be in two dimensions rather than in one-point perspective, thereby eliminating any dimensionality that is characteristic of two-point perspective in the depiction.
-

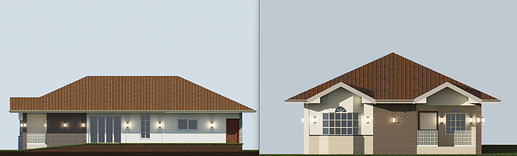

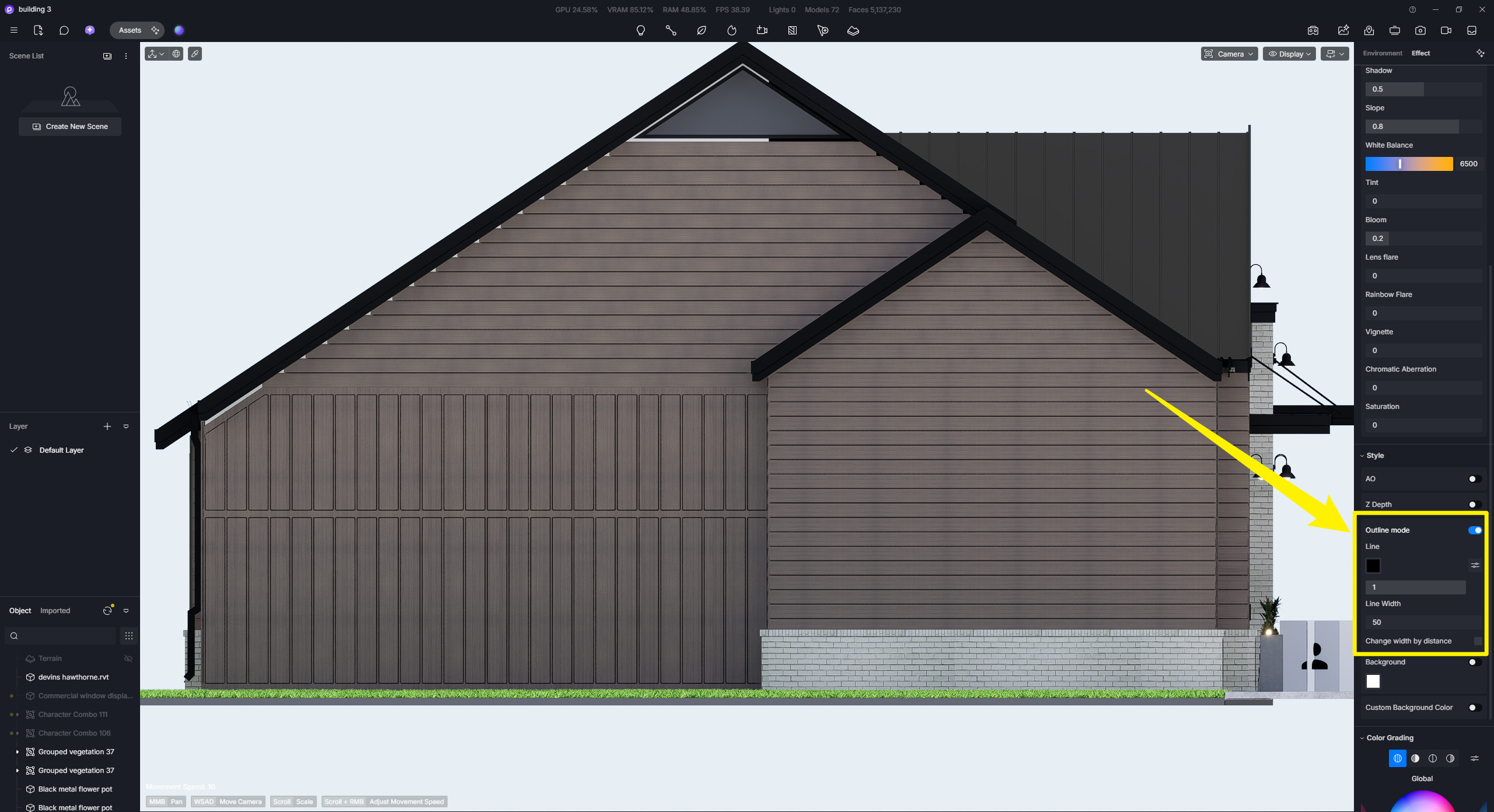

If you want to highlight the outlines and make them more noticeable, you may try to enable Outline mode.
